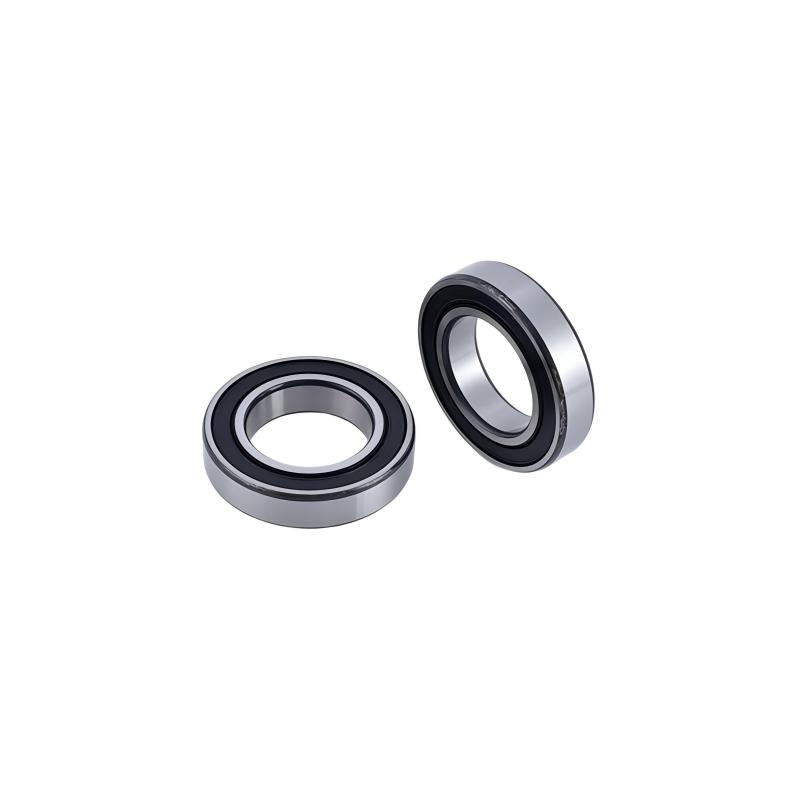

Vietnam Thin Wall Bearings 69 Series Manufacturer | Precision 6900 Series Ball Bearings Supplier

ng No.	Bore diameter	Outer diameter	Width	Radius	Basic rated load		Limit speed		Ball Complement		Weight
	D	D	W	R	Basic rated load		Limit speed		Ball Complement		Kg/pc
	Mm Inch	Mm Inch	Mm Inch	Mm Inch	Dynamic load	Static load	Grease	Oil	No.	size.
					C	CO	R/min	R/min		mm
693	3\ .1181	8\ .315	3\ .1181	0.15\ .006	0.56	0.18	54000	63000	6	1.588	0.0006
694	4\ .1575	11\ .4331	4\ .1575	0.15\ .006	0.715	0.276	45000	52000	7	2	0.0018
695	5\.1969	13\ .5118	4\ .1575	0.2\ .008	1.08	0.43	34000	43000	8	2	0.0024
696	6\.2362	15\.5906	5\.1969	0.2\ .008	1.35	0.53	32000	40000	8	2.381	0.0038
697	7\.2756	17\ .6693	5\.1969	0.3\ .012	1.61	0.715	30000	38000	9	2.381	0.0052
698	8\ .315	19\ .7480	6\ ,2362	0.3\ .012	1.99	0.865	28000	36000	7	3.5	0.0073
699	9\.3543	20\ .7874	6\ .2362	0.3\ .012	2.48	1.09	27000	34000	9	2.381	0.0082
6900	10\.3937	22\.8661	6\ .2362	0.3\ .012	2.7	1.27	25000	32000	12	2.381	0.009
6901	12\.4724	24\ ,9449	6\ ,2362	0.3\ .012	2.89	1.46	20000	28000	9	3.5	0.011
6902	15\.5906	28\ 1.1024	7\.2756	0.3\ .012	4.1	2.06	19000	26000	10	3.969	0.016
6903	17\.6693	30\ 1.1811	7\.2756	0.3\ .012	4.65	2.58	18000	24000	11	3.969	0.018
6904	20\.7874	37\ 1.4567	9\.3543	0.3\ .012	6.4	3.7	17000	22000	11	4.763	0.036
6905	25\.9843	42\ 1.6535	9\.3543	0.3\ .012	7.05	4.55	14000	18000	13	4.763	0.042
6906	30\ 1.1811	47\ 1.8504	9\.3543	0.3\ .012	7.25	5	12000	16000	14	4.763	0.048
6907	35\ 1.3780	55\ 2.1654	10\.3937	0.3\ .012	11.2	7.45	10000	14000	13	5.953	0.074
6908	40\ 1.5748	62\ 2.4409	12\.4724	0.3\ .012	14.6	10.2	8000	12000	13	6.747	0.11
6909	45\ 1.7717	68\ 2.6772	12\.4724	0.3\ .012	15.1	11.2	6000	10000	14	6.747	0.128
6910	50\ 1.9685	72\ 2.8346	12\.4724	0.3\ .012	15.6	12.2	4000	8000	15	6.747	0.132
